PVC Particles Technical Parameters:
| Parameter |
Unit |
PVC Compound For Wires And Cables |
| Tensile Strength (≥) |
MPa |
16 |
| Elongation at Break (≥) |
% |
150 |
| Thermal Deformation |
% |
30 |
| Low-temperature Impact Brittleness Temperature |
°C |
-15 |
| Thermal Stability Time at 200°C (≥) |
Min |
180 |
| Volume Resistivity at 20°C (≥) |
Ω·m |
3.0×10¹² |
| Dielectric Strength (≥) |
MV/m |
20 |
| Volume Resistivity at Working Temperature (Test Temperature 80±1°C) (≥) |
Ω·m |
5.0×10⁹ |
| Heat Aging Performance |
Temperature |
135±2℃ |
|
Time |
240h |
| Tensile Strength after Aging (≥) |
MPa |
16 |
| Change Rate of Tensile Strength |
% |
±20 |
| Elongation at Break after Aging (≥) |
% |
150 |
| Change Rate of Elongation at Break |
% |
±20 |
| Mass Loss after Aging (≤) |
g/m² |
20 |
| Product Name |
— |
PVC Compound Granules |
| Application |
— |
Cable Insulation |
| Flame Retardant |
— |
UL94 V-0 / V-2 |
| Hardness |
— |
Shore A 80 |

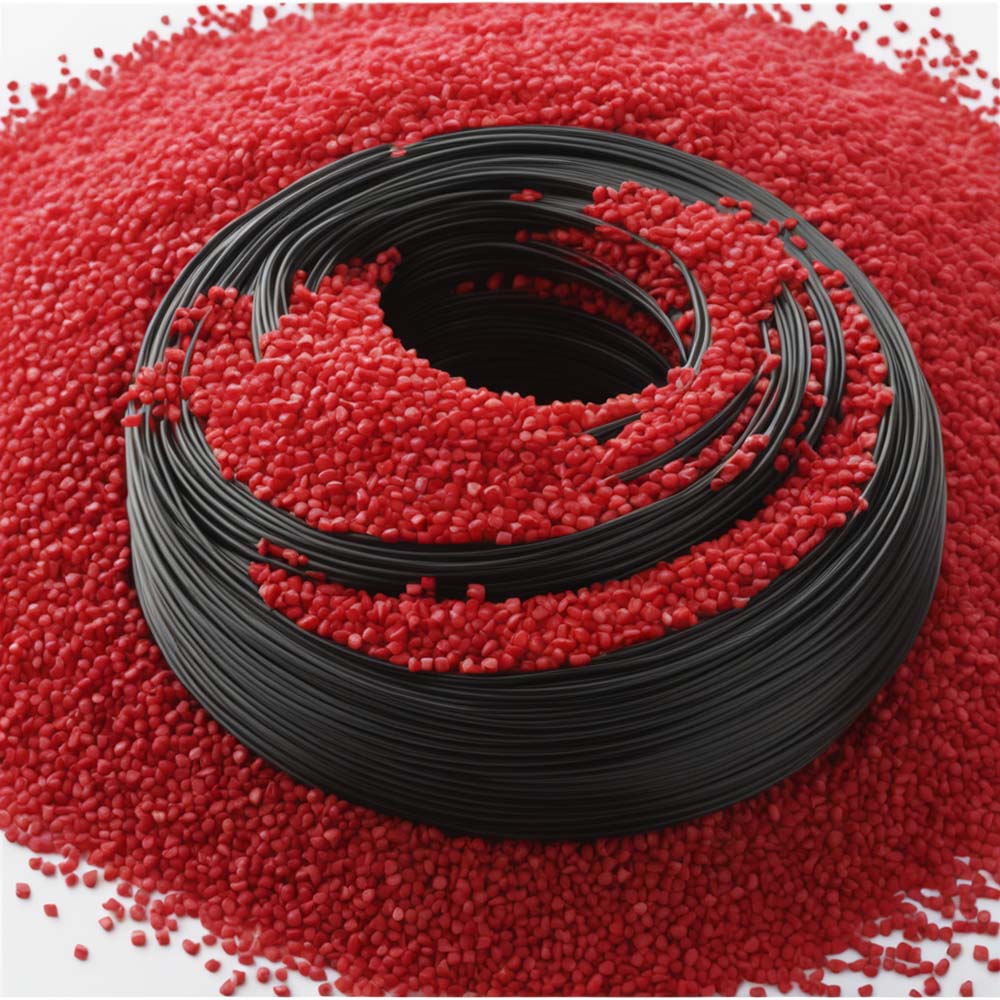

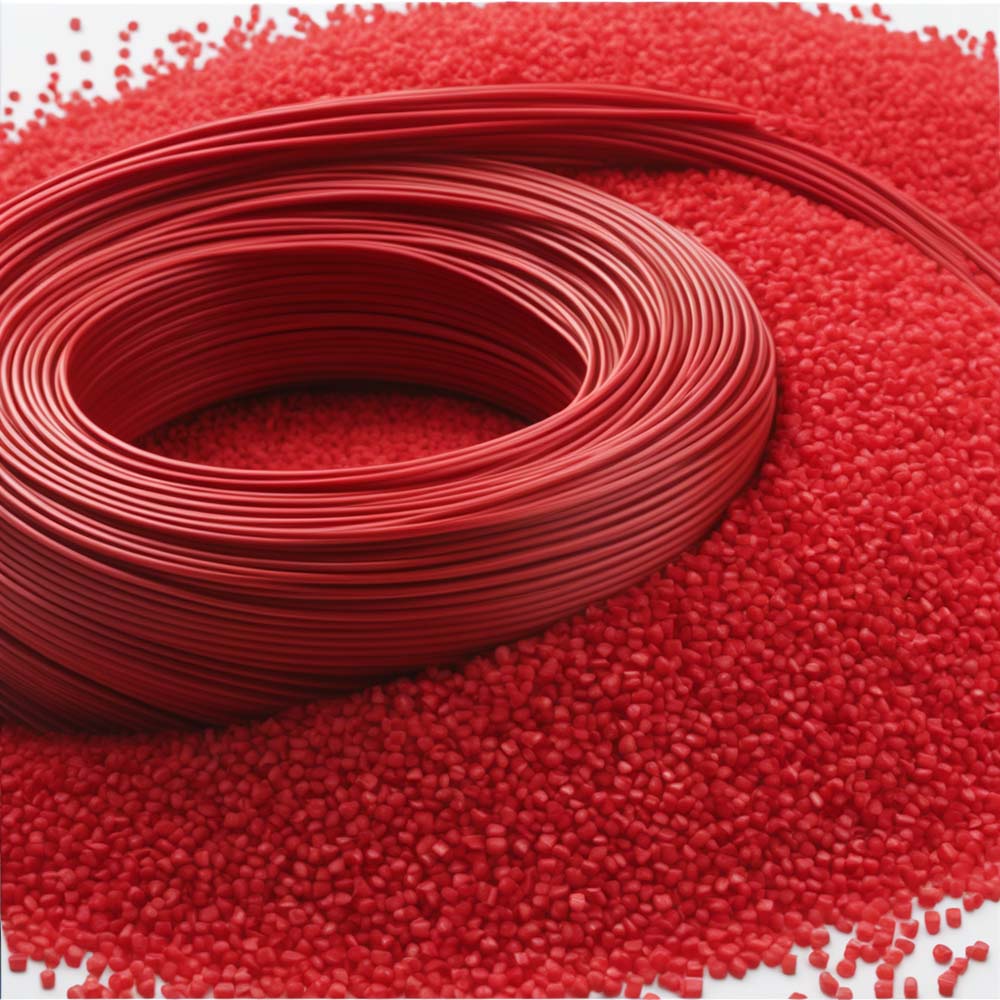

More Photos for PVC R e Compound
PVC Compound Features:
- Excellent Heat Resistance: Withstands temperatures up to 90°C, ensuring long‑term stability in high‑temperature environments.
- High Elongation at Break: ≥150%, providing softness and elasticity, ideal for applications requiring bending and movement.
- Flame‑Retardant Safety: Adjustable flame‑retardant grade (UL94 V‑0/V‑2), meeting the highest safety standards.
- Excellent Electrical Insulation: Volume resistivity ≥3.0×10¹² Ω·m, dielectric strength ≥20 MV/m, ensuring superior electrical performance.
- Good Low‑Temperature Impact Resistance: Low‑temperature impact brittleness temperature of –15°C, suitable for cold environments.
- Excellent Thermal Stability: Thermal stability time at 200°C ≥180 minutes, offering a wide processing window.
- Heat Aging Resistance: After aging at 135±2°C for 240 hours, the tensile strength and elongation at break change rate ≤±20%, with mass loss ≤20 g/m².
- Moderate Hardness: Shore A 80 hardness provides flexibility and a comfortable tactile feel.
- Environmental Compliance: Certified to ISO, ROHS, REACH, SGS, and FDA standards, and can meet food‑contact‑grade requirements (FDA).
PVC Compound Applications:
Our PVC compound is widely used across multiple industry sectors, including but not limited to:
Wire and Cable Industry – Used as insulation and sheathing materials for wires and cables, providing excellent electrical insulation and mechanical protection to ensure safe and reliable power transmission and signal transfer.
Plastic Products Industry – Applied in the manufacturing of various plastic products, such as pipes, fittings, sheets, films, and panels, meeting the performance and aesthetic requirements of different sectors.
Automotive Interior Industry – Used for interior components like car seats, dashboards, and door panels, offering comfortable tactile properties and good wear resistance while complying with stringent environmental and safety standards for automotive interiors.
Toy Manufacturing Industry – Popular in toy manufacturing due to its soft texture and vibrant color options, providing children with safe and engaging play products.
Electronic Device Cables – Used for the insulation of internal connection wires and data cables in electronic equipment, ensuring stable signal transmission.
PVC Plastic Particles Customization Service:
In addition to providing high-quality PVC granules, we also offer professional formulation technical services to our customers. We have an experienced and knowledgeable technical R&D team that conducts in-depth research on the characteristics and applications of PVC materials, enabling us to develop personalized formulation solutions tailored to your specific needs.
Whether it’s the development of new products or the performance optimization of existing ones, our technical team can collaborate closely with you. From raw material selection and ratio adjustments to the application of additives, we provide expert advice and technical support. Through continuous testing and optimization, we ensure that you obtain the PVC granule formulation best suited to your product requirements, thereby enhancing your product competitiveness.
Customization options include:
-
Color customization: From vibrant and lively to subdued and understated, our professional color-matching team can achieve precise color blending.
-
Hardness customization: Ranging from soft textures to tough and durable materials, meeting different hardness level requirements.
-
Flame retardancy grade customization: Customizable to UL94 V-0, V-1, and V-2 grades as needed.
-
Special performance customization: Oil resistance, chemical corrosion resistance, UV resistance, and more.
PVC Plastic Particles Technical Support and Service:
We provide customers with comprehensive technical support and professional services, covering the entire process from product development to practical application:
-
Technical support and on-site guidance for product application
-
Personalized formula customization and development
-
Stringent quality control and performance testing
-
Optimization of processing techniques and production guidance
-
Efficient supply chain management and logistics support
We always adhere to customer needs as our core focus. Through our professional technical team and well-established service system, we ensure the provision of high-quality products and reliable solutions. Should you have any requirements, please feel free to contact us at any time. We are committed to serving you wholeheartedly.
